Essential Project Data and HVHZ Code Compliance Details
| Primary Service | Residential Roofing – Tile Roof Replacement & Installation |
| Category | Luxury Residential / High-End Coastal Villa |
| Location | Miami, FL |
| Client Type | Private Luxury Homeowner / Custom Builder |
| Property Type | Multi-Story Mediterranean-Style Villa |
| Roof System | Aged Spanish S-Tile (Clay) |
| New System | High-Barrel Clay Tile with Self-Adhered Underlayment |
| Total Area | 7,500 Square Feet |
| Project Duration | 4 Weeks, Specialized Installation Schedule |
The Challenge: Preserving Aesthetic Value and Securing HVHZ Compliance in Miami
The existing clay tile roof on this prestigious Miami villa had surpassed its expected lifespan, exhibiting extensive cracking, granule deterioration, and structural failures in the mortar and flashing systems. The leaks threatened high-end interiors and required a definitive replacement.
The client’s requirements were uncompromising:
- Aesthetic Preservation: The new roof needed to maintain or enhance the traditional Mediterranean look while integrating modern, vibrant color tones and superior surface quality.
- Maximum Hurricane Defense: Located in the High-Velocity Hurricane Zone (HVHZ), the system required installation methods and materials that exceeded the strictest Florida Building Code (FBC) standards.
- Superior Waterproofing: A bulletproof solution was needed to protect the complex roof lines, valleys, and numerous penetrations from wind-driven rain and future storm damage.
The Solution: Custom Clay Tile & State-of-the-Art Secondary Water Barrier
We executed a full tear-off and replacement, opting for premium High-Barrel Clay Tiles paired with an advanced waterproofing system. This combination delivered the required luxury aesthetic with the necessary structural resilience for Miami’s coastal environment.
The Technical Why: The Clay Tile & HVHZ Advantage
- Material Longevity & Color Integrity: Clay Tile was selected for its non-fading properties and expected lifespan of 75+ years, ensuring the aesthetic value is preserved indefinitely, unlike concrete or shingle options.

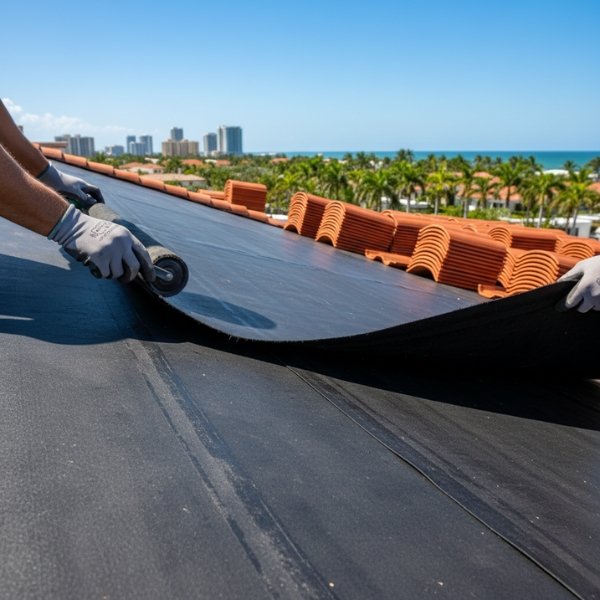

- Self-Adhered Secondary Water Barrier: Before tile installation, the entire deck received a fully adhered, high-polymer self-adhered underlayment. This critical secondary water barrier (SWB) is the true waterproofing layer, protecting the structure even if wind-driven rain penetrates the primary tile layer during a hurricane.
- Mechanical Fastening & Mortar: Tiles were secured using a combination of mechanical fasteners (approved for HVHZ uplift) and specialized mortar application to lock the tiles down, providing redundancy and complying with strict local wind load engineering.
The Process (Step-by-Step): Meticulous Luxury Installation
Our method ensured precise, high-quality execution reflective of a luxury property standard:
- Complete Deconstruction and Deck Remediation: Careful removal of all existing tile and mortar, followed by a detailed inspection and replacement of any compromised roof decking to establish a flawless base.
- SWB Installation: The self-adhered underlayment was meticulously installed across the entire 7,500 sq. ft. roof surface, overlapping all joints to create a seamless, monolithic waterproof envelope.

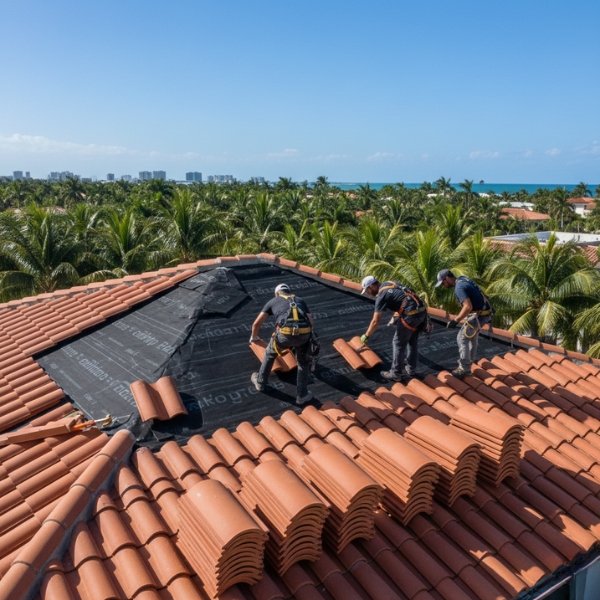

- Tile Staging and Blending: Tiles were staged on the roof for weight distribution and color blended on the ground before installation to ensure a consistent, high-end appearance across all roof slopes.
- Flashing and Detailing: All valley metal, eaves, and critical flashings were custom fabricated from corrosion-resistant aluminum or copper, ensuring durable seals at all transition points.

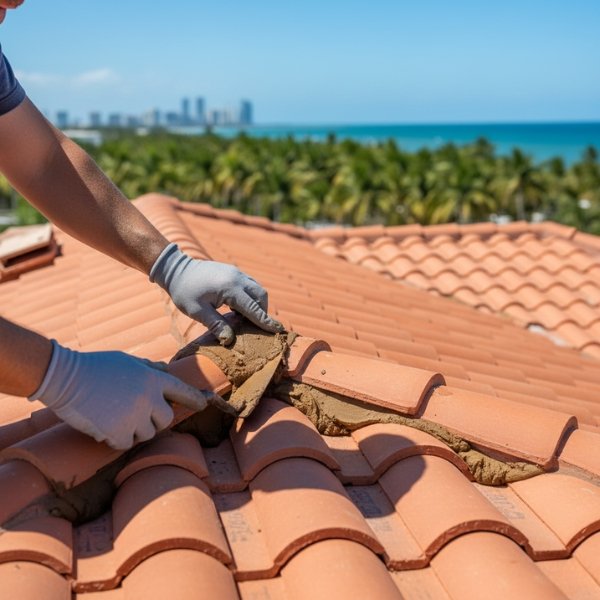

- Final Mortar and Clean-Off: Final mortar was applied to the ridges and hips, and the entire site was cleaned daily, ensuring the grounds and expensive landscaping were fully protected throughout the project.
Results & Value Delivered

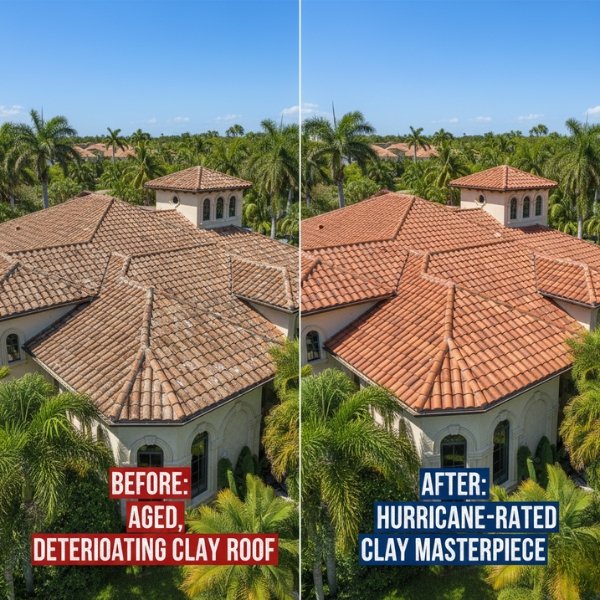

The Miami villa received a stunning, functional upgrade that secured its high market value and protected the structure against the region’s most severe weather threats.
| Value Delivered | Impact |
| 75-Year Lifespan | The new clay tile system guarantees longevity, significantly increasing the property’s asset life and deferring future replacement costs indefinitely. |
| Unwavering Hurricane Defense | Full code sign-off achieved, providing insurance compliance and maximum peace of mind against wind and water intrusion during major storms. |
| Aesthetic Excellence | The new, high-barrel tile profile elevated the home’s curb appeal and reinforced its Mediterranean luxury aesthetic. |
| Transferable Value | The client received a long-term, transferable manufacturer’s warranty on both the tile and the system installation, maximizing resale value. |
Client Feedback
Frequently Asked Questions (FAQ) for Luxury Tile Roofing
Q: What is the most critical part of a tile roof installation in Miami?
A: The most critical component is the Secondary Water Barrier (SWB)—the membrane installed underneath the tiles. In the HVHZ, this self-adhered membrane, not the tiles themselves, is the primary waterproofing defense against wind-driven rain, which can penetrate even the best-laid tiles during a storm.
Q: How often does a luxury tile roof need maintenance?
A: Clay tile is extremely durable, often lasting over 75 years. Maintenance usually involves biannual cleaning to prevent organic growth and periodic inspections (every 5-10 years) to check the integrity of the mortar, flashing, and sealant around penetrations, ensuring the system remains sealed and wind-resistant.
